Description
Article no.: 66040800

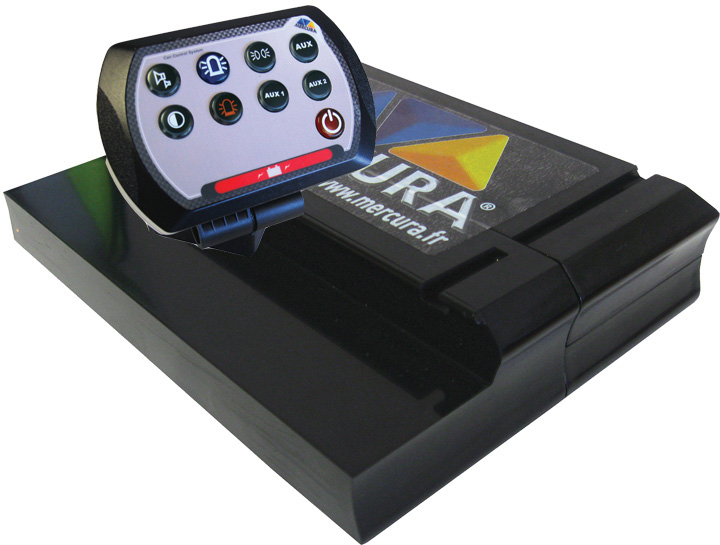

The CCS is a CAN-Bus control system adapted to control retrofitted equipment in a vehicle such as lightbars, work lights, fans, directional warning lights, interior lighting and more.
The system consists of a control unit, an operating panel with mounting bracket, 4.5 meter cable kit with connectors and fuses for quick and easy installation. A set of pushbuttons are also provided in the kit. You can choose the icons you want to use depending on which functions are selected.
The CCS system provides you with faster installations and reduces the amount of wiring as well as eliminates the need for relays. The system is available in three versions, from a simple model
with four buttons to control a few features, such as a lightbar and a couple of warning lights, to larger systems with a possibility to control many other functions.
All CCS systems have a built-in power supervision of the vehicle’s battery status.
To program the CCS system according to your specifications and needs, you can invest in a PC-based programming module and program the CCS systems to your specific requirements. You can easily change and modify the standard functions that are preprogrammed in the system and change configurations through an easy to use software. This programming equipment is to be ordered separately.
In the standard versions the system is programmed as follows: 1 pushbutton = 1 output.
- Fast installation
- Programmable
- Flexible control panel
- Easy panel mount
- CAN-bus interface
- Separate from the vehicle CAN system
- Multi voltage (10.5 – 30V)
- Power supervision (battery status)
- Works well with our ICAO-approved products
The system consists of a control unit, an operating panel with mounting bracket, 4.5 meter cable kit with connectors and fuses for quick and easy installation. A set of pushbuttons are also provided in the kit. You can choose the icons you want to use depending on which functions are selected.
The CCS system provides you with faster installations and reduces the amount of wiring as well as eliminates the need for relays. The system is available in three versions, from a simple model
with four buttons to control a few features, such as a lightbar and a couple of warning lights, to larger systems with a possibility to control many other functions.
All CCS systems have a built-in power supervision of the vehicle’s battery status.
To program the CCS system according to your specifications and needs, you can invest in a PC-based programming module and program the CCS systems to your specific requirements. You can easily change and modify the standard functions that are preprogrammed in the system and change configurations through an easy to use software. This programming equipment is to be ordered separately.
In the standard versions the system is programmed as follows: 1 pushbutton = 1 output.
- Fast installation
- Programmable
- Flexible control panel
- Easy panel mount
- CAN-bus interface
- Separate from the vehicle CAN system
- Multi voltage (10.5 – 30V)
- Power supervision (battery status)
- Works well with our ICAO-approved products
